Pneumatic Compression Systems for OEM & Wholesale
Compare LM-A, LM-C and LM-B pneumatic compression systems for wholesale, private-label and professional-use programs, with OEM / ODM options for pressure, operating modes, controller interfaces, garments and packaging.
Standard LM Series
Compare LM-A, LM-C and LM-B Pneumatic Compression Systems
Choose between a simple plug-in controller, a rechargeable touch-screen system, and a wireless 12-mode configuration. The specifications below reflect the standard LM-series parameters; OEM capability is shown separately later on this page.
LM-A Pneumatic Compression System
Plug-In · Button Control · 1 Mode
LM-C Pneumatic Compression System
Rechargeable · Touch Screen · 5 Modes
LM-B Pneumatic Compression System
Wireless · LED Touch Screen · 12 Modes
Standard Specification
LM-A vs. LM-C vs. LM-B: Standard Model Comparison
This table separates the standard LM-series specifications from LEAMAI's broader OEM / ODM customization capability. Gray and black versions of LM-A and LM-C share the same standard parameters shown below.
| Specification | LM-A | LM-C | LM-B |
|---|---|---|---|
| Standard Colors | Gray / Black | Gray / Black | Black |
| Operating Modes | 1 Mode | 5 Modes | 12 Modes |
| Heating Function | Yes | Yes | Yes |
| Lithium Battery | No | 3000mAh | 3200mAh |
| Pressure Setting | 3.0–30 kPa | 30–250 mmHg | 60–270 mmHg |
| Time Setting | 0–30 min | 10–60 min | 10–60 min |
| Startup / Power | Plug-In Only | Plug-In + Rechargeable | Rechargeable Wireless |
| Operation | Button | Touch Screen | LED Touch Screen |
| Spot Massage | No | Yes | Yes |
| Custom Brand Logo | Yes | Yes | Yes |
| Sleeve Compatibility | Confirm per order | Arm / Leg / Waist Sleeves | Confirm per order |
| Warranty | Confirm with quotation | 2 Years | Confirm with quotation |
Note: OEM / ODM pressure, chamber, timer, battery, display and garment options may extend beyond the standard configurations above. Final compatibility and warranty terms should be confirmed in the order specification.
Procurement Guide
How to Choose a Pneumatic Compression System
Match the controller to your product positioning, mobility requirement, interface preference and operating-mode needs.
Simple Plug-In Product Line
Consider LM-A when your project prioritizes simple button operation, plug-in power, one operating mode and a straightforward entry configuration.
Rechargeable Touch-Screen Product Line
Consider LM-C when you need plug-in plus rechargeable operation, a touch screen, five modes, spot massage and 30–250 mmHg standard pressure control.
Wireless Multi-Mode Product Line
Consider LM-B when cordless mobility, 12 operating modes, a 3200mAh battery and an LED touch screen are important to your target market.
Standard Model Differences
Pressure, Timer, Power & Control at a Glance
Standard specifications vary significantly by model. Use the differences below to narrow your purchasing shortlist before discussing OEM modifications.
Standard Pressure Range
Pressure units and ranges differ by controller model, so they should not be presented as one universal standard specification.
Timer & Operating Modes
The LM series covers simple single-mode operation through multi-mode digital control.
Power & Interface
Choose the controller format based on mobility requirements and the user interface expected in your market.
Controller + Garment Ecosystem
Build the Right Controller + Garment Configuration
Controller-to-garment compatibility depends on the model, connector and chamber configuration. The standard LM-C configuration lists arm, leg and waist sleeve options; for LM-A, LM-B and other garment combinations, confirm compatibility before ordering.
Overlapping Boots
Multi-chamber boot options available in different chamber counts and sizes for compatible controller configurations.
Arm Recovery Sleeves
Arm sleeve options for compatible pneumatic compression configurations and private-label programs.
Waist & Glute Wraps
Waist and hip garment options for compatible systems, with OEM material, color and sizing choices.

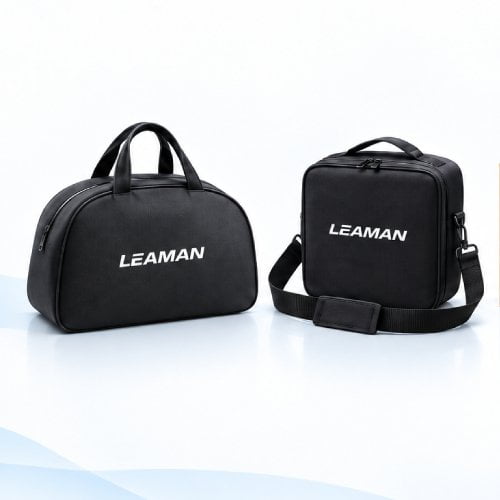

Custom Carry Cases
Custom carry bag and packaging options are available for selected OEM / ODM programs.

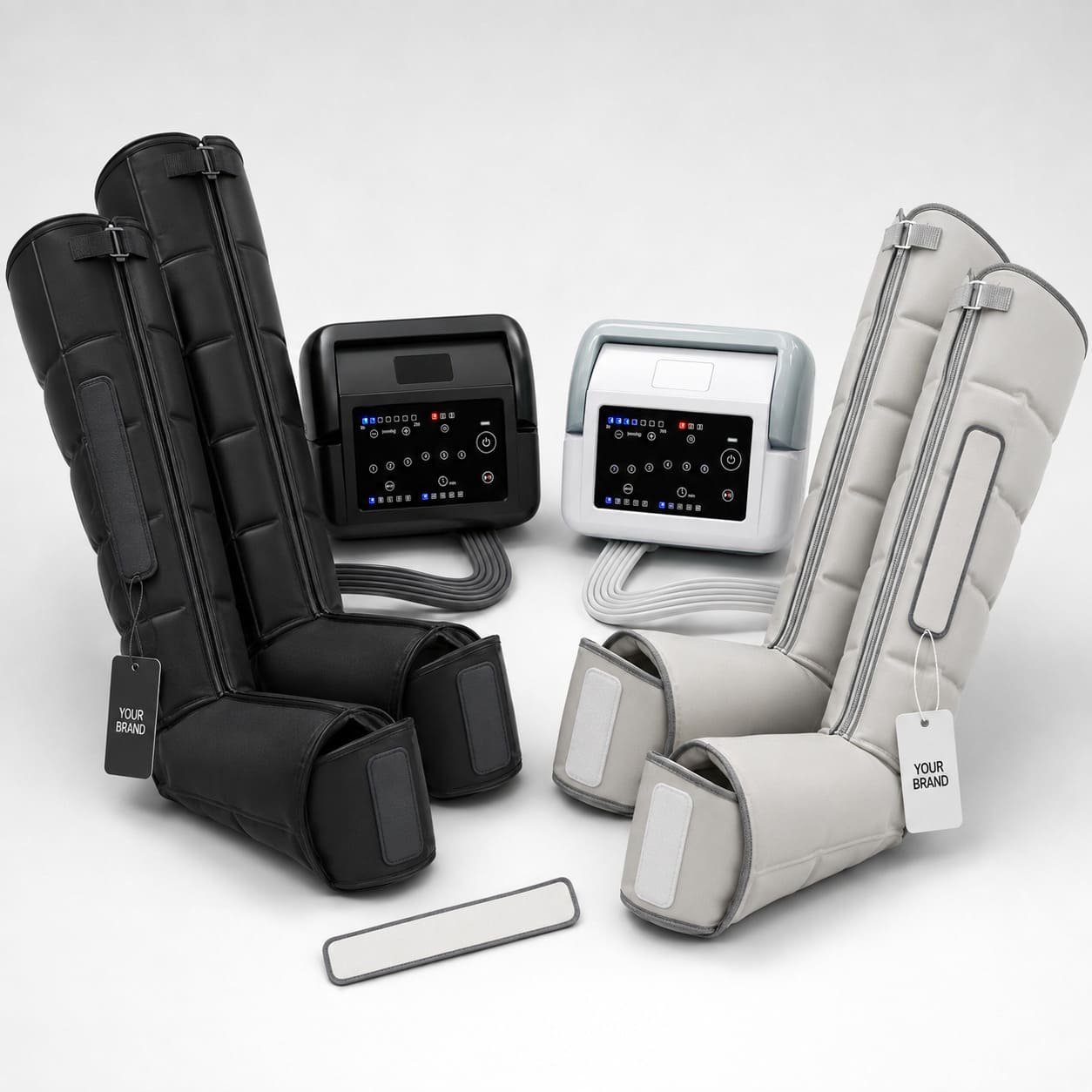

OEM / ODM Capability
Customize the Controller, Garments, Branding & Packaging
Standard LM-A, LM-C and LM-B specifications are shown above. For OEM / ODM programs, LEAMAI can adjust selected product configurations, materials, branding and packaging based on project requirements.
Controller Configuration
OEM options can cover 30–280 mmHg pressure configurations, 1–12 operating modes, 10–90 minute timer options, LED / LCD / color / touch displays and battery capacities up to 5000mAh, depending on design.
Garments & Fit
4 / 6 / 8 / 12-chamber configurations, TPU composite fabric, nylon or Oxford fabric, custom colors, S–XL sizing and selected arm, waist, hip and vest accessories are available by project.
Branding & Interface
Customize housing color, UI language, controller branding and garment logos. Logo methods can include silk screen printing, laser marking, hot stamping or embossing.
Packaging & Accessories
Private-label options include color boxes, carry bags, EVA cases, multilingual manuals, replacement liners and plugs selected for the destination market.
Design Draft in About 3 Days · Sample in About 7 Days
Timing depends on the customization scope and final specification. Send your logo, target market, controller requirements, garment configuration and packaging brief for evaluation.
IQC → IPQC → FQC → OQC
Quality Control for Pneumatic Compression Systems
LEAMAI applies incoming inspection, in-process checks, finished-product inspection and outgoing quality checks from components through final shipment.
Verify pressure output and control accuracy against the specified range for each model.
Chamber sealing is checked before shipment to reduce leakage and pressure-loss issues.
Controllers, adapters, wiring and rechargeable battery systems are checked for electrical performance and safety.
Testing can include repeated inflation cycles, battery cycling, temperature checks, fabric pull/fold tests and operating-noise inspection.
Direct Source Manufacturer
Scalable Manufacturing Built for Global Supply
Since 2009, LEAMAI has integrated pneumatic garment production, electronics assembly, testing and packaging within a 30,000 m² manufacturing facility.
In-House Production
From Raw Materials to Final Shipment
Raw Material IQC
TPU fabrics and electronic components inspected before production.
Chamber Welding
High-frequency welding forms durable and leak-resistant air chambers.
Electronics Assembly
Electronic assembly, controller assembly and pressure calibration.
Functional & QC Testing
Pressure, electrical performance, durability and operating noise checked before approval.
Packing & Shipment
OEM packaging, final OQC and global shipping preparation.
Buyer Fit
Who Sources LEAMAI Pneumatic Compression Systems
The LM series can support distributors, private-label brands, e-commerce sellers and professional-use buyers with different product-positioning needs.
Sports & Recovery Distributors
Importers and wholesalers building a recovery-equipment portfolio for retailers, gyms, clubs and specialty channels.
Private-Label & E-Commerce Brands
Brands that need test orders, logo and packaging customization, product imagery support and scalable replenishment after validation.
Rehabilitation & Medical Distributors
Professional buyers that require stable batch quality, technical documentation and model-specific regulatory support for their destination market.
Gyms, Recovery Centers & Wellness Businesses
Commercial users comparing corded, rechargeable and wireless controllers for repeated recovery or wellness service use.
Explore Ecosystem
Related Products & Solutions
Explore compatible compression garments, application solutions and OEM manufacturing services for your pneumatic compression product line.

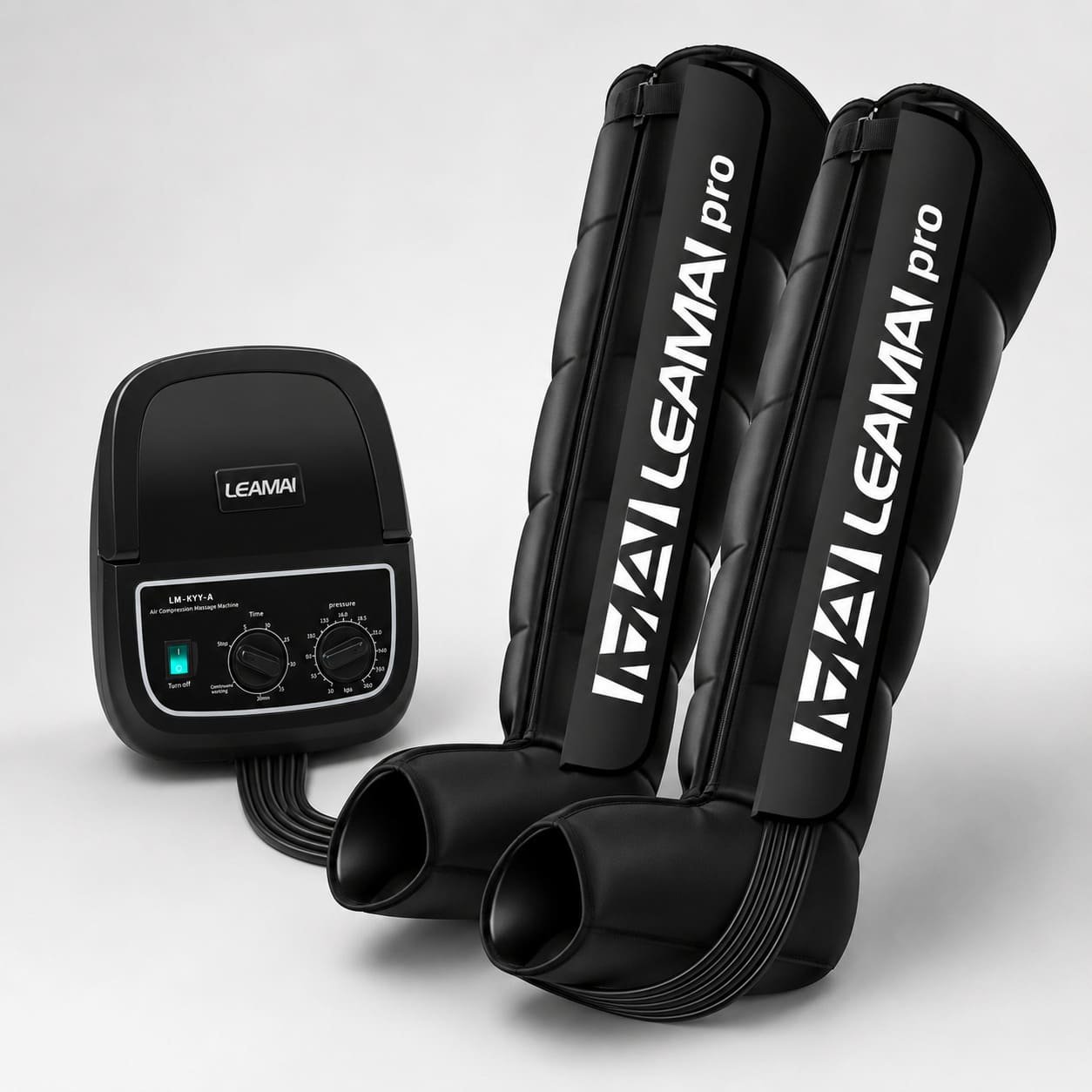

Compression Boots & Sleeves
4, 6, 8 and 12-chamber compression boots, arm sleeves and waist garments engineered for consistent pneumatic pressure distribution.
Sports, Rehabilitation, Beauty & Home Wellness
Explore pneumatic compression configurations for sports recovery, rehabilitation, beauty and home-wellness product programs.
Private Label & Custom Engineering
Build your own compression product line with customized controllers, garments, branding, packaging and product configurations.
Procurement FAQs
Pneumatic Compression System FAQs
Key answers about LM-series samples, MOQ, customization, production, documentation, shipping and after-sales support.
01
What is the minimum order quantity?
+
Evaluation samples can start from 1 unit. For eligible standard configurations, new customers can discuss small trial orders from about 2 units. The standard MOQ is 500 units and can be negotiated by model and customization scope.
02
How long does OEM sample development take?
+
For a typical OEM project, a design draft can be prepared in about 3 days and a physical sample in about 7 days. Actual timing depends on the customization scope.
03
What is the production lead time?
+
Regular models are typically produced in about 3–7 days. Customized orders are typically around 15 days, depending on complexity. Shipping time is separate and depends on the destination and transport method.
04
Which specifications can be customized?
+
OEM / ODM options can include 4 / 6 / 8 / 12-chamber configurations, selected pressure ranges, 1–12 operating modes, 10–90 minute timer options, display type, battery capacity, housing color, UI language, garment materials, logo application and packaging.
05
Can you customize our brand and packaging?
+
Yes. Private-label options include controller and garment logos, housing colors, selected UI customization, color boxes, carry bags, EVA cases and multilingual manuals.
06
What certifications and documents can you provide?
+
LEAMAI's documentation portfolio includes ISO 13485 and applicable CE, FDA, MDR, RoHS, FCC, EMC and LVD documentation. The exact scope varies by model and destination market, so confirm the required documents before ordering.
07
What shipping options are available?
+
Samples and urgent orders can ship by express or air freight; bulk orders can ship by FCL / LCL sea freight. Rail or truck options can be arranged for relevant regions, and LEAMAI can also work with your nominated freight forwarder.
08
What warranty and after-sales support is available?
+
Warranty terms should be confirmed by model and order program. LEAMAI also provides replacement-parts support and remote troubleshooting guidance. The current LM-C standard specification lists a 2-year warranty.
Request Samples & OEM / ODM Support
Whether you are evaluating LM-A, LM-C or LM-B, launching a private-label line or sourcing for distribution, our team can support you from model selection through OEM / ODM production.
Fast Business Response
Product recommendations, pricing and project evaluation from the factory team.
Product Configuration Support
Controller selection, pressure range, garment configuration and OEM consultation.
OEM / ODM Customization
Logo, colors, enclosure, packaging, garment and system configuration.
Sample to Bulk Production
Support for evaluation samples, private-label orders and wholesale programs.
